• JHZT-1606 One-Piece Fitting
  • JHZT-1606 One-Piece Fitting
  • PEEK in the analytical instruments industry has been very successful application of the instrument to change the channel or switch to a different brand of column material using PEEK tubing and fittings will be very convenient. PEEK tubing is easy to connect, PEEK connectors not only without tools, h...
  • Inquiry Now
  • Share to:

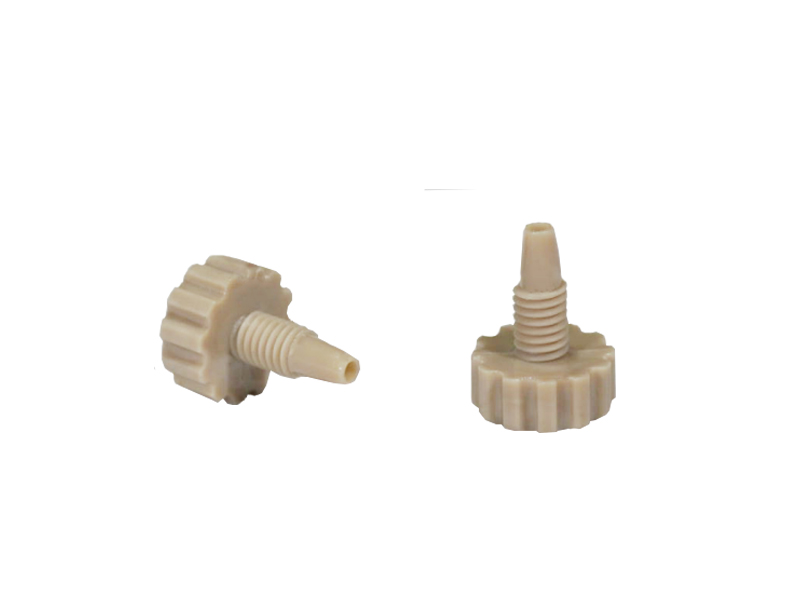

    HZT-1606 One-Piece Fitting


    lBigger knurling, Easy locking

    lReusable

    lHigh pressure resistance

    lOne-Piece design without ferrule

    lFor 1.6mm OD Capillary

    lWide application, high temperature resistance, corrosion resistance

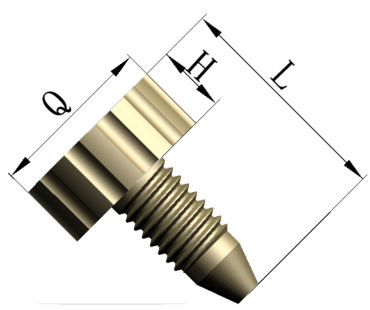

    Spec
    Part NumberJHZT-1606
    Material/ColorPEEK Natural/Black
    Total length:L16mm
    Diameter of hand tight part11.8mm
    length of hand tight part4.9mm
    hread specification10-32UNF
    Knurling2.8 Bigger Knurling
    For capillary1/16”
    Max. Pressurization25Mpa (250bar)
