    • JHST-04 tee connector
  • JHST-04 tee connector
  • PEEK in the analytical instruments industry has been very successful application of the instrument to change the channel or switch to a different brand of column material using PEEK tubing and fittings will be very convenient. PEEK tubing is easy to connect, PEEK connectors not only without tools, h...
  • Inquiry Now
  • Share to:

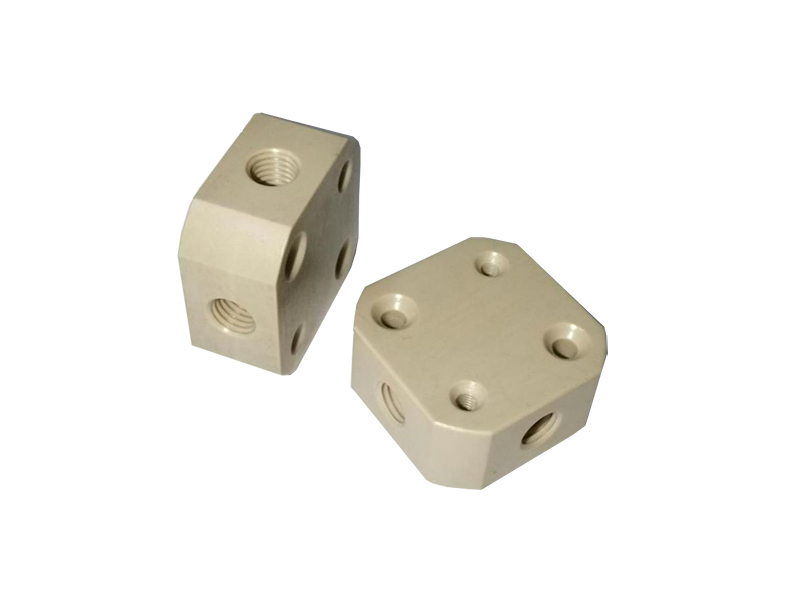

    JHST-04 tee connector

    • Machining Type, Good appearance

    • Reserve fixed hole position

    • Inner hole tube 1/8'' to 1/8'' to 1/8''

    • High temperature resistance, corrosion resistance, high strength

    • Can be combined with a variety of two-piece or one-piece fitting



    Spec.
    Part NumberJHST-03
    Material/ColorPEEK natural

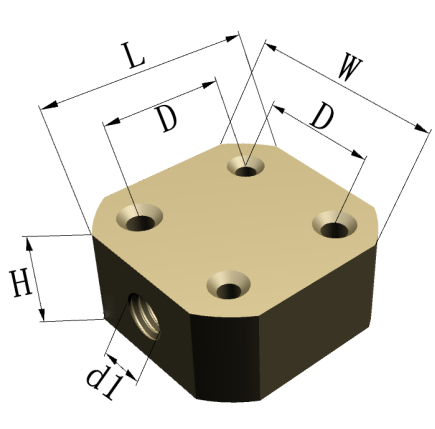

    L*W*H:Dimensions：L*W*H27*27*12.7mm
    D:Hole spacing15.5mm
    ：Hole sizeDia 4.5mm
    Inner thread specification3个1/4-28UNF
    Capillary size1/8'' to 1/8'' to 1/8''
    Max. Pressurization28Mpa（280bar）
