 Home > Products > PEEK parts > Analytical instrument industry
    • JHST-03 tee connector
  • JHST-03 tee connector
  • PEEK in the analytical instruments industry has been very successful application of the instrument to change the channel or switch to a different brand of column material using PEEK tubing and fittings will be very convenient. PEEK tubing is easy to connect, PEEK connectors not only without tools, h...
  • Inquiry Now
  • Share to:

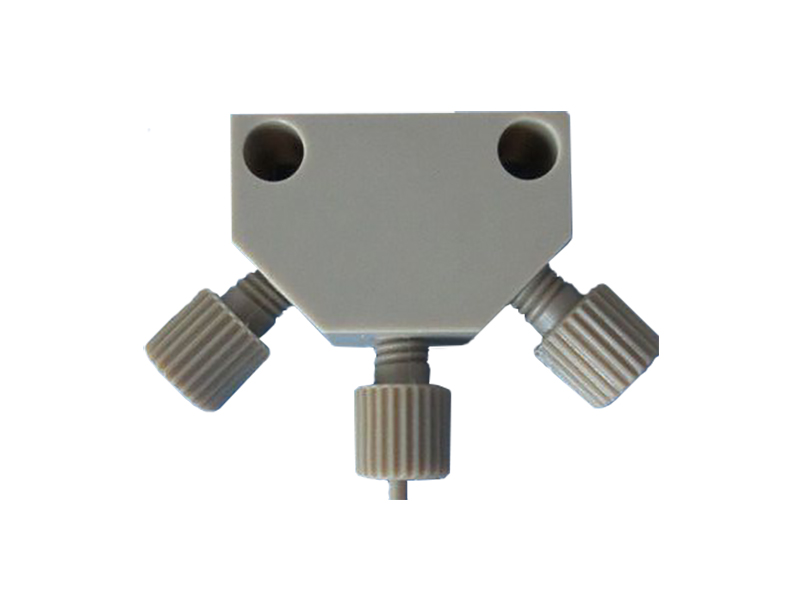

    JHST-03 tee connector

    • Reserve fixed hole position

    • Inner hole tube 1/16'' to 1/16'' to 1/16''

    • High temperature resistance, corrosion resistance, high strengthlCan be combined with a variety of two-piece or one-piece fitting

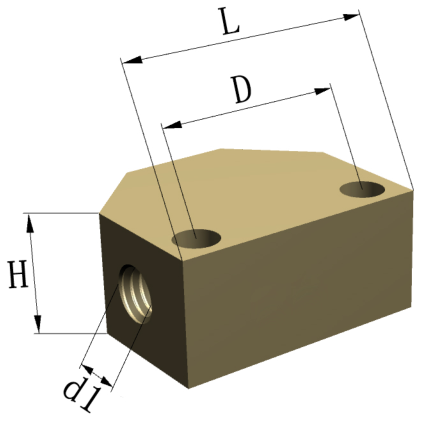

    Spec.
    Part NumberJHST-03
    Material/ColorPEEK natural
    Dimensions25.4*16.5*9.5mm
    Hole spacing19mm
    Hole sizeDia 4.5mm
    Inner thread specification3个10-32UNF
    Capillary size1/16'' to 1/16'' to 1/16''
    Max. Pressurization30Mpa（300bar）
