 Home > Products > PEEK parts > Analytical instrument industry
    • JHST-02 tee connector
  • JHST-02 tee connector
  • PEEK in the analytical instruments industry has been very successful application of the instrument to change the channel or switch to a different brand of column material using PEEK tubing and fittings will be very convenient. PEEK tubing is easy to connect, PEEK connectors not only without tools, h...
  • Inquiry Now
  • Share to:

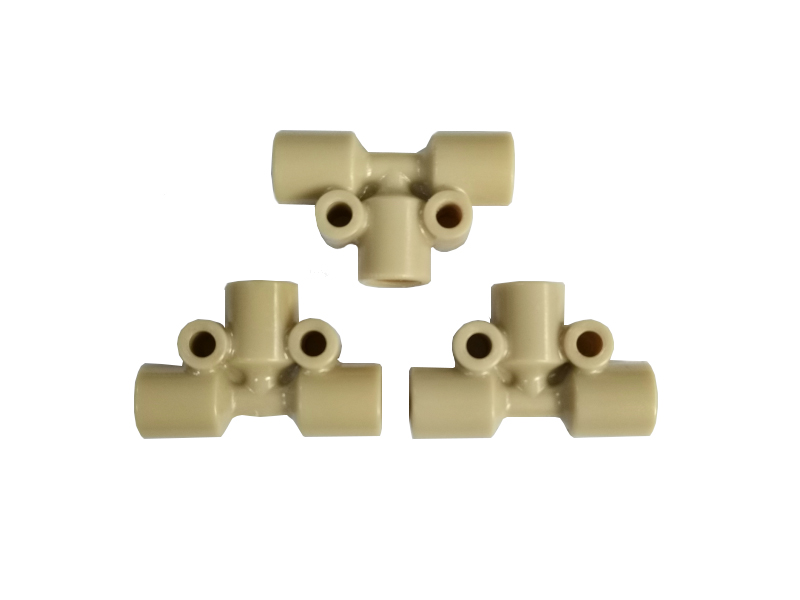

    JHST-02 tee connector

    • Reserve fixed hole position

    • Inner hole tube 1/16'' to 1/16'' to 1/16''

    • high temperature resistance, corrosion resistance, high strength

    • Can be combined with a variety of two-piece or one-piece fitting

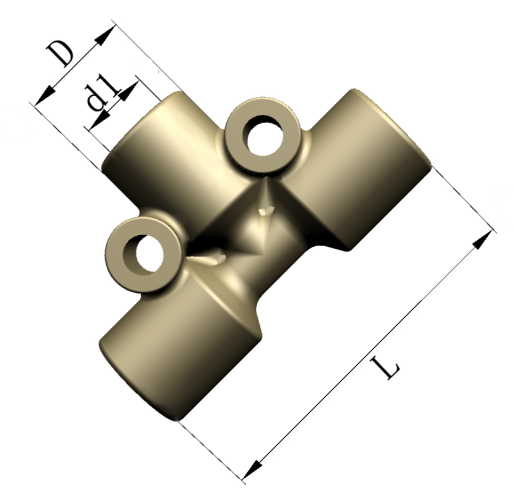

    Spec.
    Part NumberJHST-02
    Material/ColorPEEK natural
    Total length27.7mm
    OD9.3mm
    Inner thread specification3个10-32UNF
    Capillary size1/16” 转 1/16”转1/16”
    Max. Pressurization25Mpa（250bar）
