 Home > Products > PEEK parts > Analytical instrument industry
    • JHST-01 tee connector
  • JHST-01 tee connector
  • PEEK in the analytical instruments industry has been very successful application of the instrument to change the channel or switch to a different brand of column material using PEEK tubing and fittings will be very convenient. PEEK tubing is easy to connect, PEEK connectors not only without tools, h...
  • Inquiry Now
  • Share to:

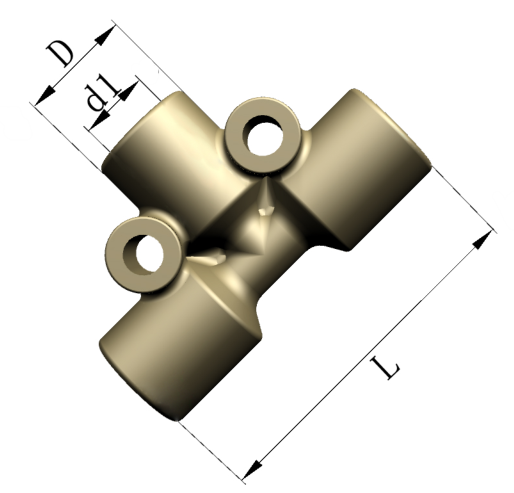

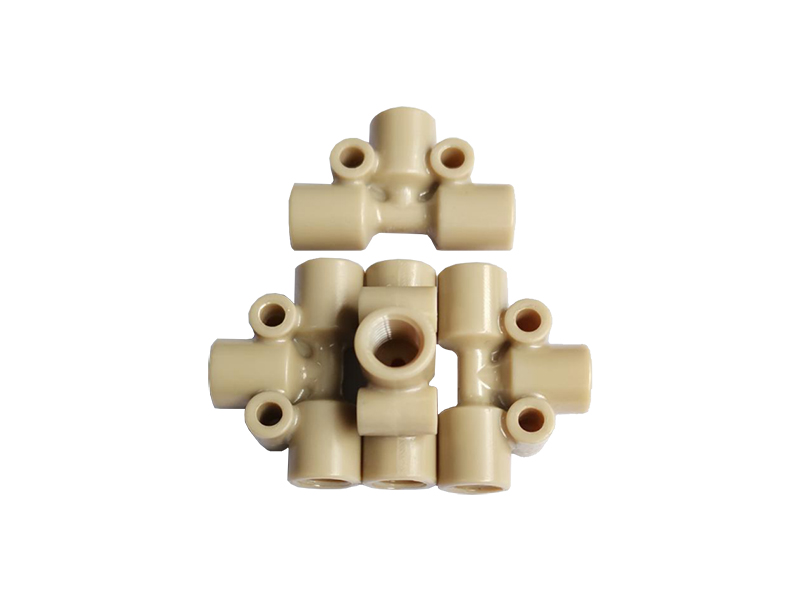

    JHST-01 tee connector

    • high temperature resistance, corrosion resistance, high strength

    • Can be combined with a variety of two-piece or one-piece fitting


    Spec.
    Part NumberJHST-01
    Material/Colornatural PEEK
    otal length27.7mm
    OD8.8mm
    Inner thread specification3个1/4-28UNF
    Max. Pressurization25Mpa（250bar）
