 Home > Products > PEEK parts > Analytical instrument industry

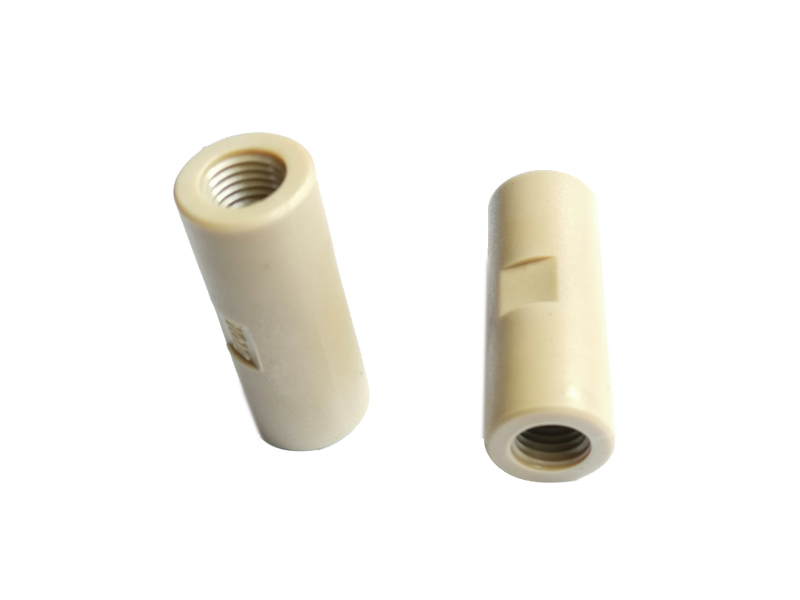

    • JHET-05 Two way connector
  • JHET-05 Two way connector
  • PEEK in the analytical instruments industry has been very successful application of the instrument to change the channel or switch to a different brand of column material using PEEK tubing and fittings will be very convenient. PEEK tubing is easy to connect, PEEK connectors not only without tools, h...
  • Inquiry Now
  • Share to:


    • high temperature resistance, corrosion resistance, high strength

    • Can be combined with a variety of two-piece or one-piece fitting

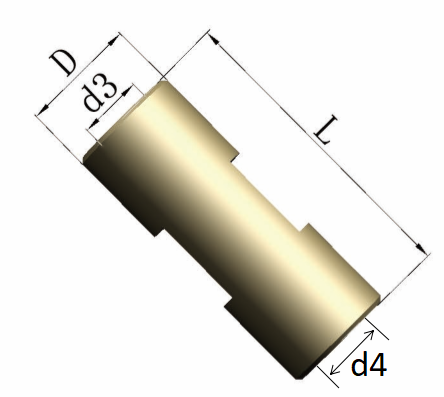

    Spec.
    Part NumberJHET-05
    Material/Colornatural PEEK
    Total length33.4mm
    OD12.8mm
    thread specification 内螺纹5/16-24UNF转5/16-24UNF
    Max. Pressurization30Mpa（300bar）
