 Home > Products > PEEK parts > Analytical instrument industry
    • JHET-02 two way connector
  • JHET-02 two way connector
  • PEEK in the analytical instruments industry has been very successful application of the instrument to change the channel or switch to a different brand of column material using PEEK tubing and fittings will be very convenient. PEEK tubing is easy to connect, PEEK connectors not only without tools, h...
  • Inquiry Now
  • Share to:

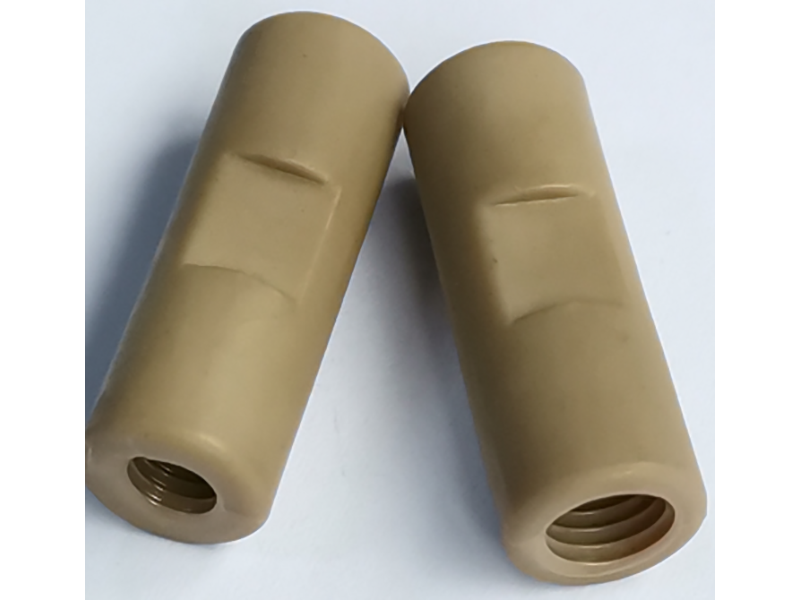

    JHET-02 two way connector

    • Inner hole tube 1/16'' to 1/8"

    • high temperature resistance, corrosion resistance, high strength

    • Can be combined with a variety of two-piece or one-piece fitting

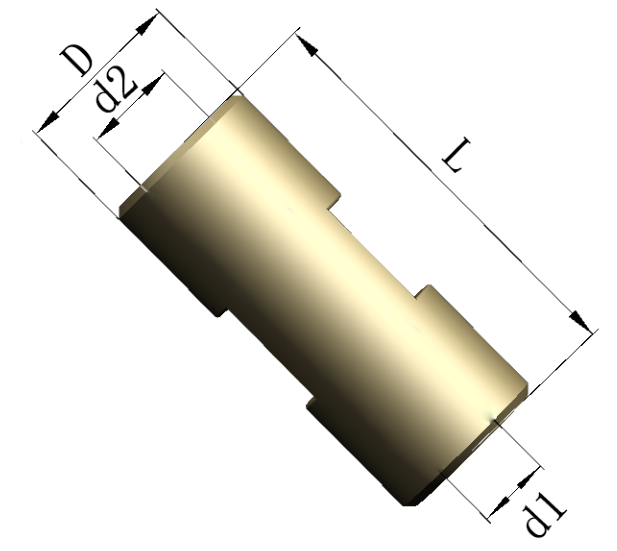

    Spec.
    Part NumberJHET-02
    Material/ColorPEEK natural
    Total length24mm
    OD10mm
    thread specification 内螺纹10-32UNF转1/4-28UNF
    Max. Pressurization30Mpa（300bar）
