 Home > Products > PEEK parts > Analytical instrument industry
    • JHCQ-02 Wall feed-through
  • JHCQ-02 Wall feed-through
  • PEEK in the analytical instruments industry has been very successful application of the instrument to change the channel or switch to a different brand of column material using PEEK tubing and fittings will be very convenient. PEEK tubing is easy to connect, PEEK connectors not only without tools, h...
  • Inquiry Now
  • Share to:

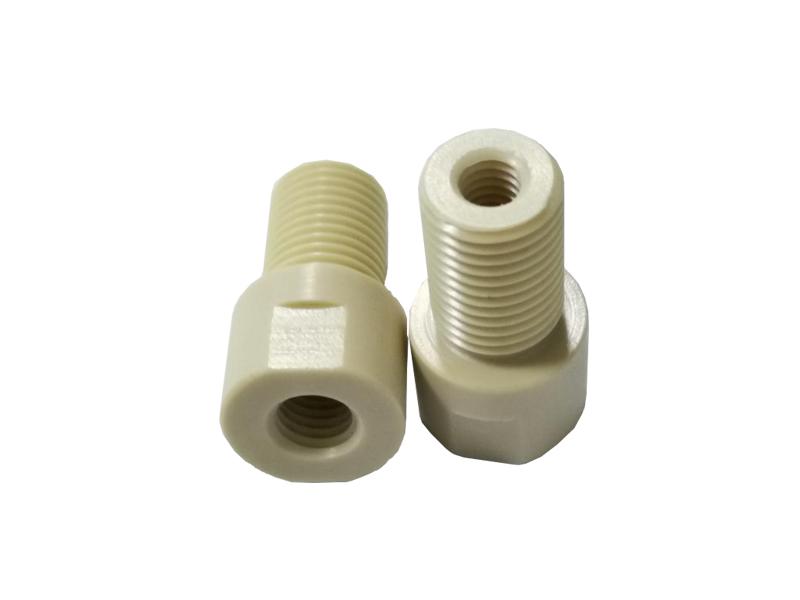

    JHCQ-02 Wall feed-through

    • can be used for though-wall with POM nut

    • Inner hole tube 1/16'' to 1/8"

    • high temperature resistance, corrosion resistance, high strength

    • Can be combined with a variety of two-piece or one-piece fitting


    Spec.
    Part NumberJHCQ-02
    Material/Color PEEK natural
    Total length24mm
    Diameter of hand tight part13mm
    Length of hand tight part10mm
    thread specification 外螺纹3/8-24UNF Outer thread
    内螺纹10-32UNF转1/4-28UNF
    Number of supporting ferruleJHRH-01/JHRH-03
    Max. Pressurization35Mpa（350bar）
